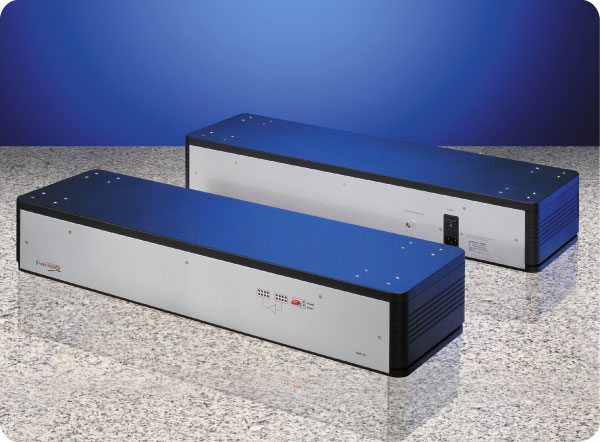

Details: Modular, multifunctional active vibration isolation elements – Halcyonics heavy-duty isolator series consist of at least two isolation elements; complete control electronics are fully integrated to the elements. Duo 73 has been engineered as a modular system to meet the needs of the most diverse applications. Duo 73 systems can be used in conjunction with steel honeycomb-structured platforms, and, using the available adapter plates, can alternatively be installed directly below the frame of many scanning electron microscopes (e.g., Carl Zeiss Supra). The basic configuration of the Duo 73 consists of two elements; combinations of 3, 4 or more elements can be readily implemented.
Installation of a Duo 73 system is exceptionally easy. The isolation elements are attached to the application; they already contain complete control electronics. The latter requires only an AC power output; no compressed air or other media are necessary. Before the Duo 73 is started up, the actual load has to be adjusted. No further adjustments or modifications of the Duo are necessary. After installation the Duo 73 system does not require any further operator attendance or maintenance and can remain in
the continuous operating state indefinitely. Thanks to wide range load adjustment, Halcyonics Duo units allow a load range of 0 – 400 kg (0 – 880 lbs) for each element with just one version – this offers good flexibility also for future applications.
- Modular design, combinations of two, three and more units available
- Isolator element contains complete control electronics; only AC power required – no compressed air needed.
- Provides better vibration isolation (> 98,22 % isolation
above 10 Hz) than is normally possible with complicated, large
pneumatic dampers.
- No natural low-frequency resonance; as a result, excellent vibration characteristics also in frequency ranges below 5 Hz
- Active isolation in all six degrees of freedom
|
