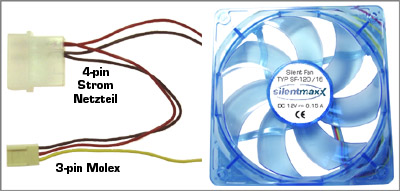

| 120mm Case Fan with 3-Pin and 4-Pin Connectors | |  |  | | | Brand: Silentmaxx | | Details: silentmaxx® fans are characterised by good airflow, ultra quiet operation and long life span. The fans are universal, containing both 3-pin Molex connectors to attach them to the Main board, and 4-pin connectors to connect to a PSU cable. In addition, the number of revolutions of the fan can be monitored and adjusted. The fans are delivered in a Blister packing. | | Installation: Specifications
|
Silentmaxx 120mm |
Silentmaxx 80mm |
| Connector type |
3 pin & 4 pin |
3 pin & 4 pin |
| Air volume throughput |
41.2 CFM |
19.4 CFM |
| Fan speed (rpm) |
1200 |
1500 |
| Acoustic noise level (dB(A)) |
19.0 |
12.0 |
| Rated voltage (VDC) |
7-13.8 |
7-13.8 |
| Power consumption (W) |
NA |
NA |
| Bearings |
Sleeve |
Sleeve |
| Dimensions (mm) |
120 x 120 x 25 |
80 x 80 x 25 |
| Weight (g) |
NA |
NA |
| Mounting screws included |
No |
No |
Please note: The specifications listed in the chart above are for fans operated in "Silent" mode. To operate an AcoustiFan or Zalman fan in silent mode, the optional resister shipped with these products must be added inline.
If you decide to use more than one case fan in your PC, it is generally good practice for every fan that you have sucking air into the case (usually at the front), you should have another one blowing it out (usually at the rear), in other words, one exhaust fan for every inlet fan. The role of a fan is easily determined by which way around you decide to mount it, since the fans are symmetric and reversible. | | Shipping Cost: $9.99 | | Shipping Info: Usually ships within 5 days. |
Listing Price: $24.10 | Selling Price: $22.95 |
|     |
|
|
120mm Case Fan with 3-Pin and 4-Pin Connectors - Quiet Computer Fans and Quiet Computer PC Parts by Silentmaxx
120mm Case Fan with 3-Pin and 4-Pin Connectors is a great Quiet Computer Fans and Quiet Computer PC Parts by Silentmaxx. Enjoy the great selection of Quiet Computer Fans and Quiet Computer PC Parts
Browse our selection of quiet computer fans and quiet pc fans. We offer truly silent computer fans and silent pc fans. Case fans, CPU fans, motherboard, and video card cooling fans share the same design considerations as Power Supplies and you pretty much get what you pay for. Buy quiet computer fans and quiet pc fans. Browse our large selection of silent computer fans and silent PC fans. Silent fans and quiet fans are really a great way to replace your loud fan and eliminate fan noise. You can also decrease case fan noise with vibration isolation. Even rubber grommets placed over the mounting bolts, between the fan frame and the surface to which the fan mounts, will help reduce the transfer of vibrations to areas of the case that can resonate sympathetically and acoustically amplify the noise. PC noise can be drastically reduced by this. You could also cut your own gaskets out of sound dampening materials and place them between the fan and mounting area for your own custom solution. Recently, Acousti Products has introduced some fairly inexpensive, yet effective, silicone gel fan mounting grommets and similar fan gaskets. Acoustic absorbing materials for quieting PCs can be placed around the airflow path inside the case to absorb noise. Just be careful not to impede the airflow itself. Standard 80mm case fans usually come in one or two wiring configurations, and each has its own type of connector. A four-pin Molex connector delivers 12V DC. It doesn’t inherently accommodate speed control which doesn’t give you as much control over performance of the fan and output noise. The three-wire type of fan allows feedback from the fan so the user can see the fan speed, and/or an alarm can sound if the fan fails so you will have notification before your computer fries. If your three-pin fan speed isn’t controlled by the motherboard, inexpensive fan speed controls let you limit the fan speed to a lower RPM to drop unwanted noise levels quite a bit while making sure enough airflow to dissipate heat still exists.
A fan’s spec sheet will specify air throughput in CFM or cubic feet per minute. The larger the better, a 120mm fan rotating at a low speed will usually move more air than a smaller fan running at a higher RPM. The AcoustiFan 120mm fans from Acousti Products are literally inaudible while providing excellent air circulation. Most people think aluminum cases are better at getting rid of heat; however, a thick steel case is better for stopping sound transmission from within the computer. Well-fitted case parts can help reduce noise that escapes through cracks. Some people leave the side of their PC off, thinking it provides more ventilation. However, many cases need to be fully assembled for the air flow design to work effectively. Always consider getting a full tower to allow for better ventilation. A larger internal space means that less air needs to go through the system per minute. Always think efficient air flow and convection is good when installing internal components. If you can leave some air space between multiple hard drives, do so.
The most common case fan sizes are: 80mm, 92mm and 120mm. There are dozens of models with different speeds, airflows and noise ratings. (CPU heat sink fans are generally 60mm, or more recently, 80mm in size.)
In general, larger fans generate greater airflow (measured in CFM) and operate at slower speeds (RPM) than their little brothers. Due to lower fan blade speeds, larger fans typically generate less noise and at a lower pitch. Larger fans typically produce less air velocity and less static pressure than smaller fans do. This can be a disadvantage when trying to mount a large fan to a small heat sink using an adapter. Most fan adapters are aerodynamically very inefficient. The larger fans just can’t push their rated airflow through a restricting adapter and therefore will usually perform less effectively than a smaller, high velocity fan with a similar airflow rating.
It is a good strategy to use multiple, low RPM fans. These fans do not move as much air as higher RPM fans do, so we need to use more of them. If you have the room and prefer to use 92mm or 120mm fans, that’s fine; just use the quiet larger models.
The fans we offer are the best at offering good air flow with minimal noise. Try to keep the airflow (air-in vs. air-out) reasonably balanced. If you plan to use filters on the inlet fans (a good idea) then compensate for reduced airflow by having more total airflow going into the case than coming out. Enjoy our selection of quiet computer fans and quiet pc fans. We have selected the best silent computer fans and silent PC fans for your need.
|
|
