| Details:

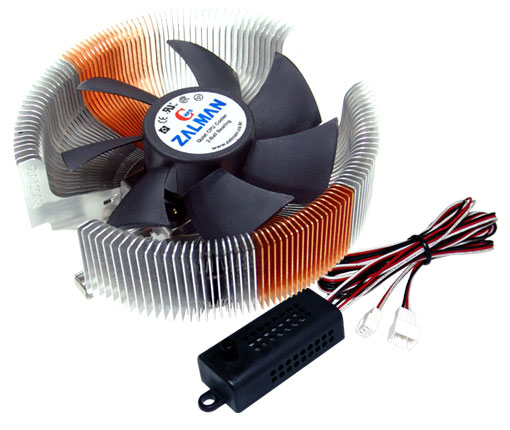

The 7000B has slightly improved upon the 7000A heatsink not only in performance, but in a 7g weight reduction.
The 7000B comes with the easy-to-use Fan Mate 2, and even includes a high strength fiberglass reinforced plastic Backplate for use with AMD Sempron/AMD64 motherboards.
Features
1. Does not generate
noise or vibration in Silent Mode.
2. Pure Copper and Pure Aluminum base materials ensure excellent heat
dissipation.
3. Intel Pentium 4 (Socket 478), AMD Duron/Athlon/Athlon XP (Socket
462), and Sempron/AMD64(Socket 754/939/940) compatible design for broad
compatibility.
4. 92mm fan inside the FHS maximizes airflow and makes installation
easier.
5. Adjustable fan speed controller (FAN MATE 2) enables control of
noise and fan performance.
Components
Common Components
1) Heatsink Assembly (CNPS7000B-AlCu)
2) Four Bolts
3) Thermal Grease
4) Fan Speed Controller (FAN MATE 2)
5) Double-sided Tape (for installing FAN MATE 2)
6) Cable for FAN MATE 2
7) User's Manual - in English and Korean
Components for Intel Pentium 4 (Socket 478)
8) Two Clip Supports for Socket 478
Components for AMD Duron/Athlon/Athlon XP (Socket 462)
9) One A-Type (Blue) Clip Support for Socket 462
10) One B-Type (White) Clip Support for Socket 462
11) Four Bolts - For fastening the Clip Supports
12) One set of Washers
Components for AMD Sempron/AMD64 (Socket 754/939/940) 13) Two Nipples
14) One Backplate
15) Big washers (from component #12)
|
|
| Installation: Compatible
CPU and Motherboard
| |
Socket |
CPU |
Silent Mode
(1,350~1,800 rpm) |
Low-noise Mode
(1,800~2,600 rpm) |
Compatible
Motherboard |
| INTEL |
478 |
Celeron |
All Speeds |
All Speeds |
View |
| Pentium 4 |
Willamette |
All Speeds |
All Speeds |
| Northwood |
1,350 rpm up to 3.2 GHz |
2,600 rpm at all speeds |
| Prescott |
- |
2,600 rpm at all speeds |
| AMD |
462 |
Duron |
1,350 rpm at all speeds |
All Speeds |
View |
| Athlon |
Thunderbird |
1,350 rpm at all speeds |
All Speeds |
| Athlon XP |
Palomino |
1,350 rpm at all speeds |
All Speeds |
| Thoroughbred |
1,350 rpm at all speeds |
All Speeds |
| Barton |
1,350 rpm at all speeds |
All Speeds |
| 754 |
Athlon 64 |
1,350 rpm at all speeds |
All Speeds |
View |
| 939 |
Athlon 64 |
1,350 rpm at all speeds |
All Speeds |
| Athlon 64 FX |
1,350 rpm at all speeds |
All Speeds |
| 940 |
Athlon 64 FX |
1,350 rpm at all speeds |
All Speeds |
| Opteron |
1,350 rpm at all speeds |
All Speeds |
Specifications
| CNPS7000B-AlCu
|
FAN
Speed Controller (FAN MATE 2)
|
| Dimensions |
109 (L) x 109 (W) x 62
(H) mm |
Dimensions |
70 (L) x 26 (W) x 26
(H) mm |
| Weight |
438g |
Weight |
20g |
| Base Material |
Pure Aluminum & Pure
Copper |
Output Voltage |
5V ~ 11V ¡¾ 2% |
| Dissipation Area |
3,154 cm2 |
Allowable Power |
6W or lower |
| Bearing Type |
2-Ball |
Connector |
3-Pin |
| Speed |
1,350 ~ 2,600 rpm |
|
Thermal
Resistance |
0.29 ~ 0.22 C/W | |
|
| Noise Level |
18.0 ~ 27.5 dB | |
|
Precaution
1. Fan should be set to Normal Mode if OVERCLOCKING.
2. Quiet PC is not responsible for any damage resulting from CPU OVERCLOCKING.
3. The maximum weight for a cooler is specified as 450g for Intel Socket 478 and AMD Socket 754/939/940, and 300g for the AMD Socket 462 CPU. Special care should be taken when moving a computer equipped with a cooler which exceeds the relevant weight limit. Zalman Tech is not responsible for any damage that occurs when moving a computer. |
