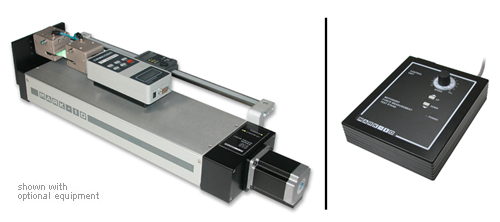

| ESMH Motorized Test Stand | |  |   | | | Brand: Mark 10 | Details: The new ESMH is a 50 lb capacity horizontal test stand designed for tension, compression, and friction testing. A smooth top surface makes this tester particularly well suited for coefficient of friction testing. Other typical applications include the testing of sealed pouches, fabrics, tubing, sutures, and many other items in virtually every industry.
The tester features integrated limit switches for repetitive testing or other tests where travel limits are required. Modular design accommodates a wide variety of test sample shapes and sizes. The ESMH uses a remote control unit, distancing the operator from the test for added safety and convenience. Use this test stand with a Mark-10 force gauge and grips to create a complete testing solution.
- Maximum force: 50 lb [250 N]
- Maximum travel: 13" [330 mm], 12" [305 mm] w/optional travel display
- Speed range: 0.2 - 50 in/min [5 - 1270 mm/min]
- Speed accuracy: ±5% of setting, ±0% variation with load
- Limit switch repeatability: ±0.001" [0.03 mm]
- Remote control console with a 3' [1 M] cable
- Universal power supply: 80-250 VAC
- Mounting holes for bench mounting
- Removable loading plate with matrix of #10-32 threaded holes
| Installation: Click here for Data Sheet
| | Shipping Cost: $39.99 | | Shipping Info: Usually ships within 5 days. |
Listing Price: $2849.99 | Selling Price: $2799.99 |
|     |
|
|
